IC-A02

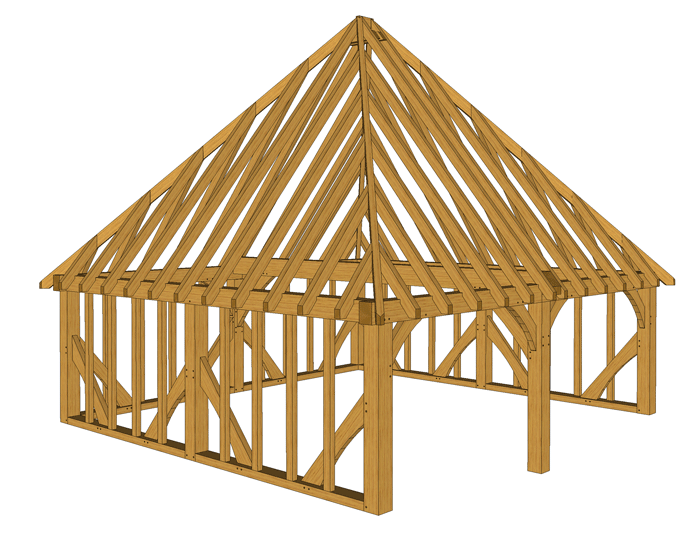

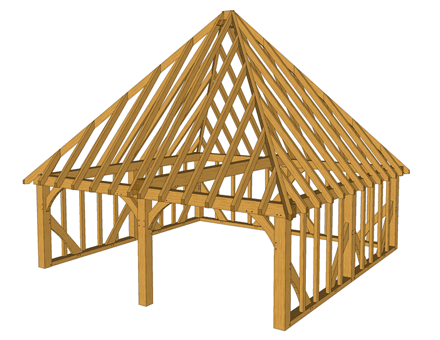

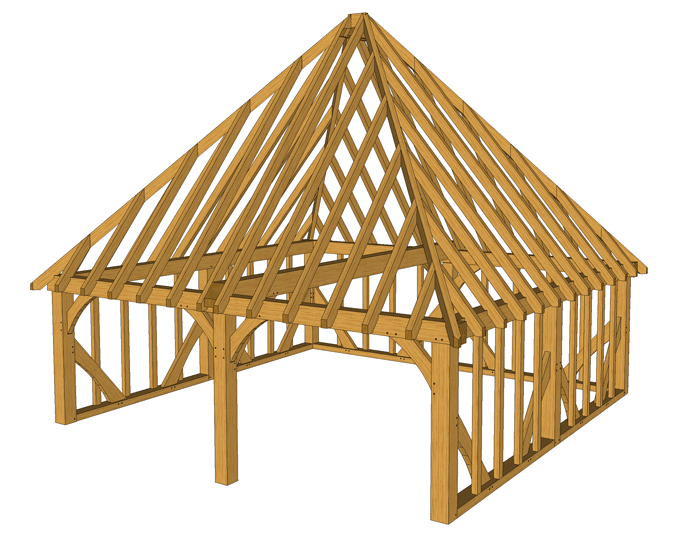

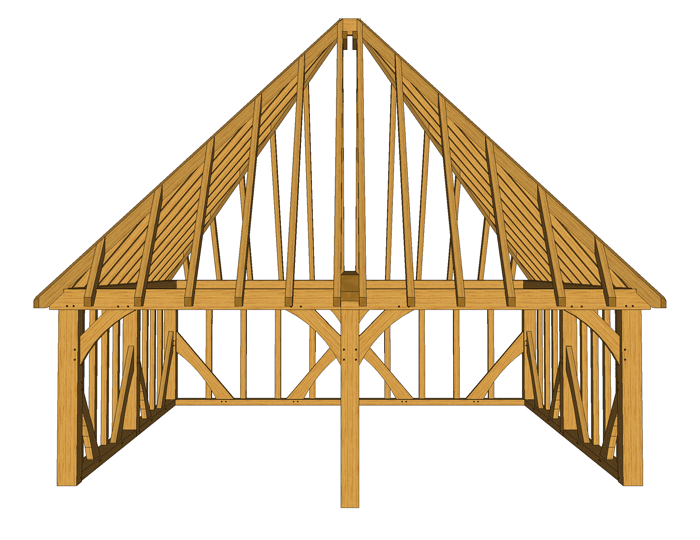

A02 IC-A02 Front View
IC-A01 Side View

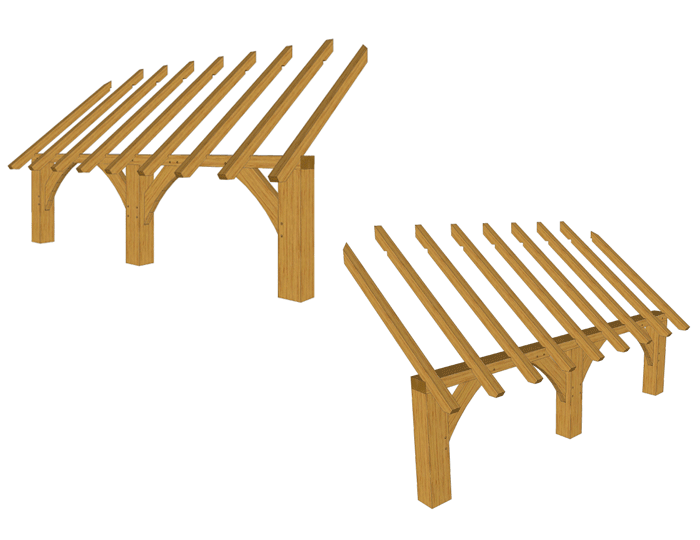

IC-A02 Log Store

2- bay, full-hip style garage made from the highest quality European Green oak. Supplementary, log store available on right or left hand side.



Specifications

(Dimensions include 3-course brick plinth)

Height: 6000mm.
Width: 6230mm.
Depth: 6000mm.
2 Oak Front Posts: 215mm x 195mm
Oak Posts: 195mm x 195mm
Oak Head Plate: 220mm x 195mm
Tie Beam: 275mm x 195mm
Oak Rafters: 75mm x 125mm





Timber Grade - QP1 (D24)
