IC-C03 |
 |
 |
 |
|
 |
|

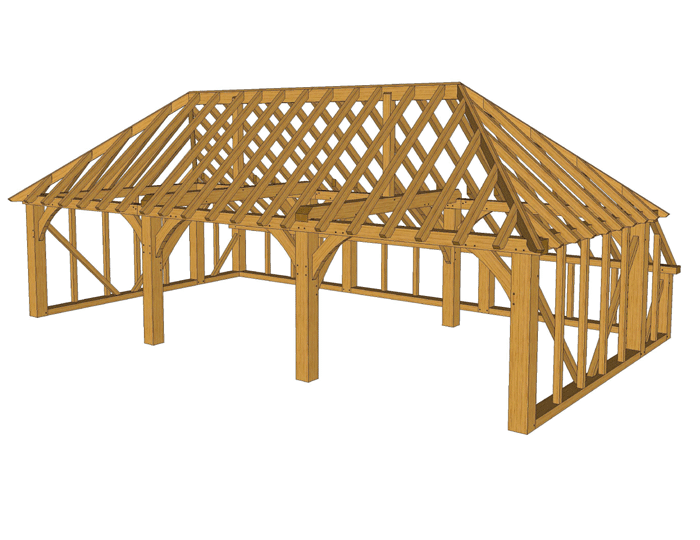

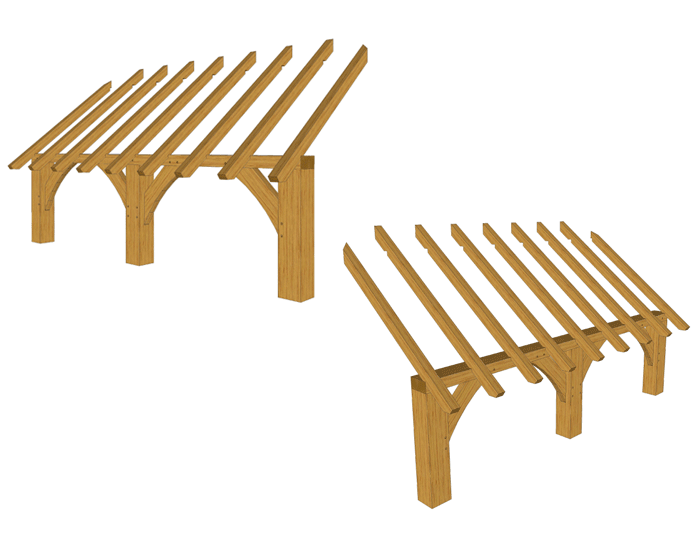

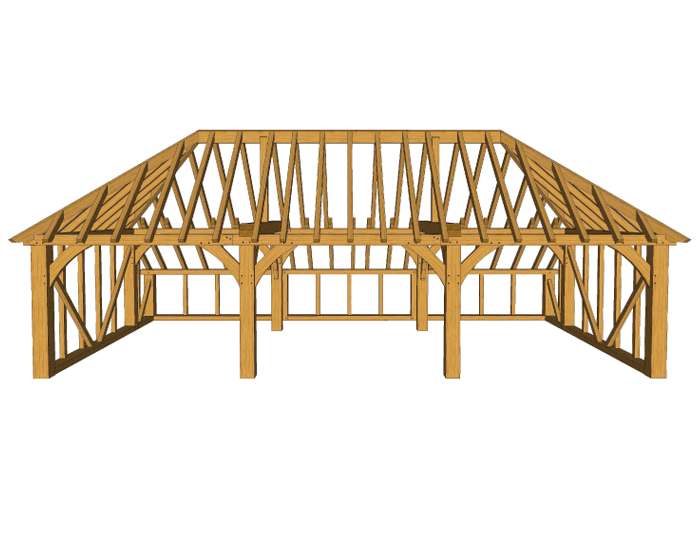

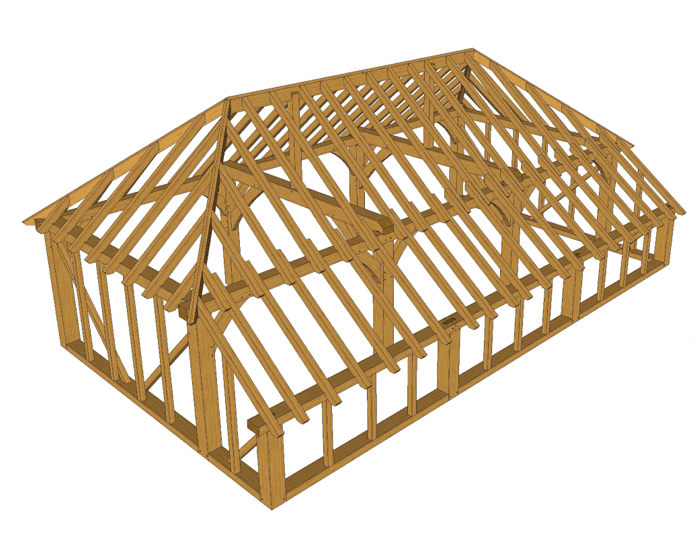

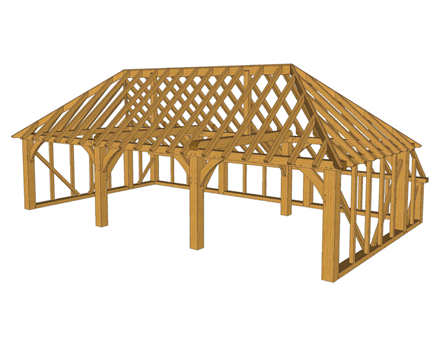

3-bay, full-hip style garage with rear cat-slide, made from the highest quality European Green oak. Supplementary, log store available on right or left hand side.Specifications(Dimensions include 3-course brick plinth)Height: 3950mm, Width: 8850mm, Depth: 5000mmFront Uprights: 215mm x 200mmUprights: 200mm x 200mmHead Plate: 150mm x 200mmRafters - 95mm x 70mm
|
DownloadsIC-C03 Product SheetIC-C03-Log Store Product SheetFull IC Catalogue |
