IC-B01 |
 |
 |
 |
|
 |
|

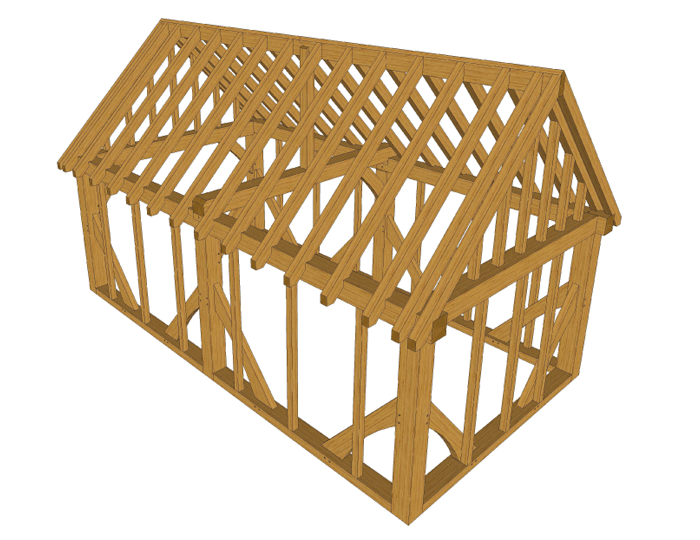

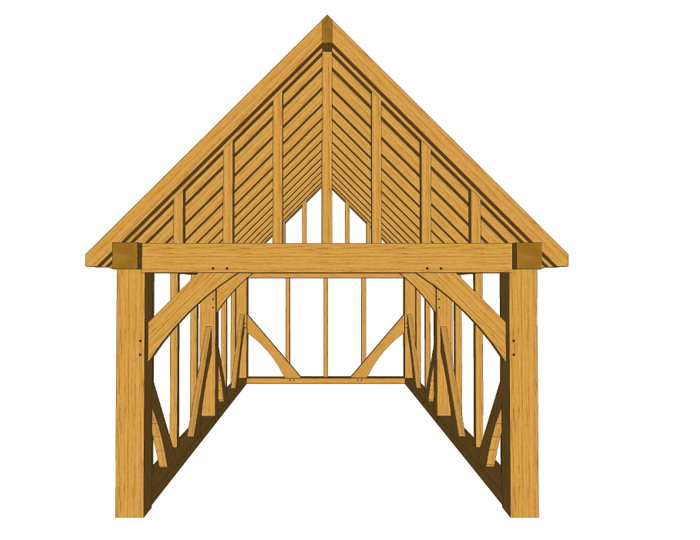

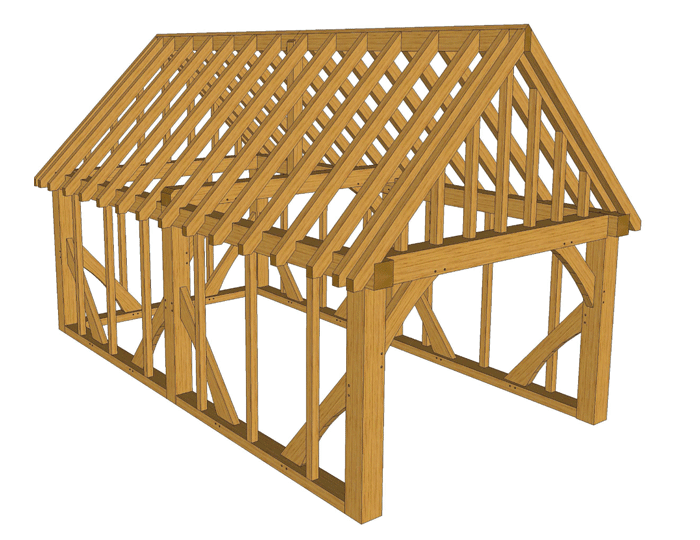

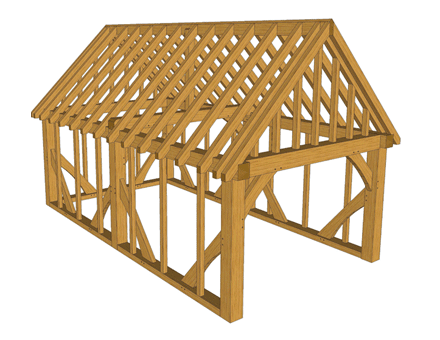

Single bay, gable end style garage made from the highest quality European Green oak. Supplementary, log store available on right or left hand side.Specifications(Dimensions include 3-course brick plinth)Height: 3950mm, Width: 3230mm, Depth: 6000mmFront Uprights: 215mm x 200mmUprights: 200mm x 200mmHead Plate: 225mm x 200mmRafters: 70mm x 150 mmTie Beam - 275mm x 195mmTimber Grade - QP1 (D24) |
DownloadsIC-B01 Product SheetIC-B01-Log Store Product SheetFull IC Catalogue |
